EWD-RL-BJ2 Villa elevator overload device Manual(V2.3)
Attention
：
Before using, be sure to read the following sections carefully.
The weighing device has strict payload limit, please be sure to install reasonably; Otherwise,
personal and equipment damage may be caused.The company is not responsible for the loss.
Notice：
In any case, our part is only responsible for the product own quality within the warranty period.
● Declaration：
Due to technological progress, the company reserves the right to change the product; For technical
parameters, please refer to the manual delivered with the product.

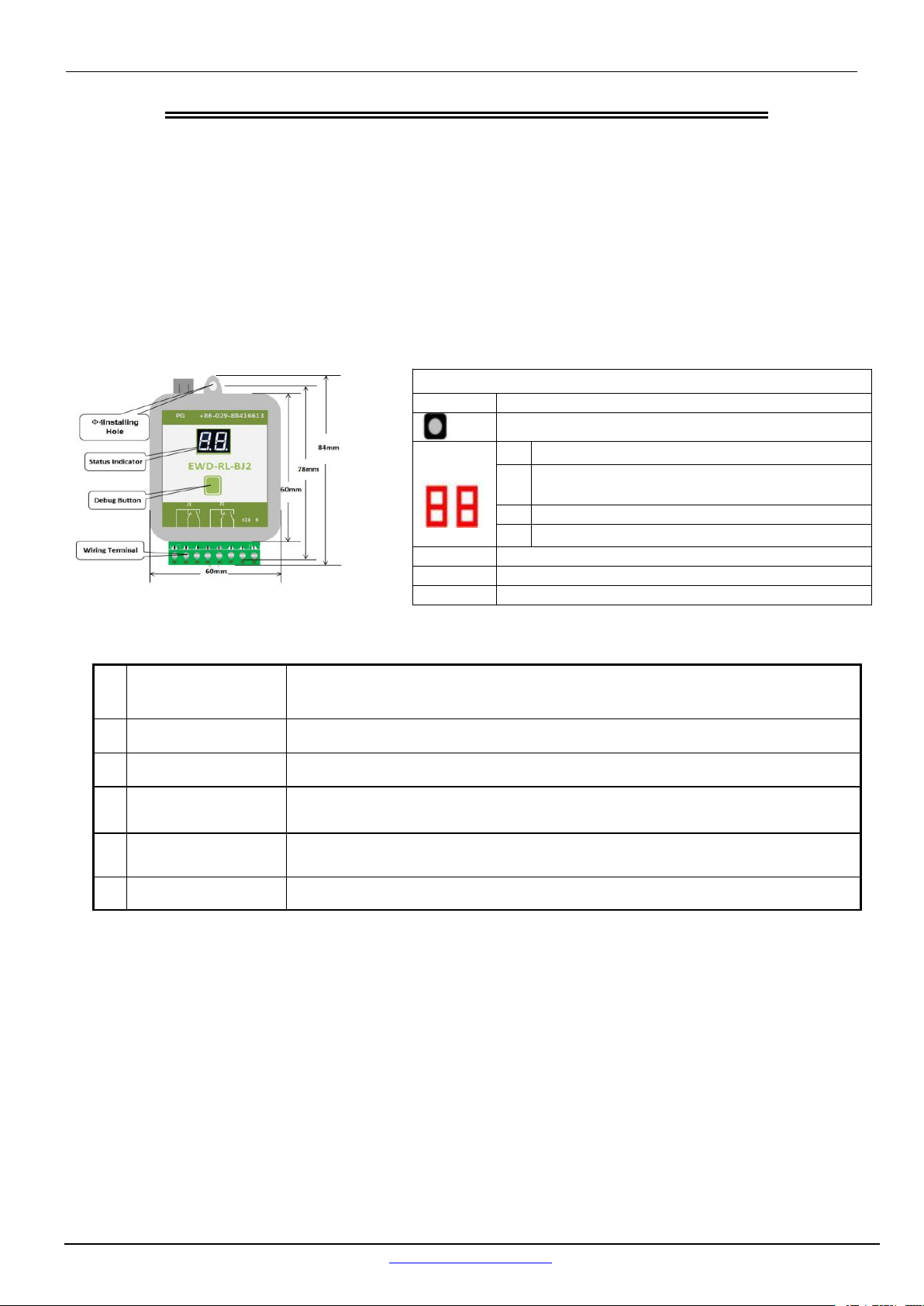

Product Appearance, Installing Method and Relevant Structure
● Technical Specifications：
：Intensity exceeding the above listed parameter limits may cause the system abnormality or its permanent damage.
● Main Features：
1.The system is of the structure of sensor with the domination of loading cell and controller, which
can be installed at the car-side rope hitch；
2.Directly outputting full-load or overload signal depending on the change of elevator car payload
；
3. Simple adjustment, high precision of measurement and quick and easy installation.
●
Debugging of weighing device under other circumstances:
If the following reasons occur, it is necessary to re-modify the working parameters of the weighing
device, and the modification method is the same as the above.
1
、
The elevator changes the decoration of the car, so that its self-weight changes;
The code description of the normal work of the digital tube
PG
Connect load sensor
Button, use for adjust
Status
indication
L0
No adjust(self-learning without load)
J0
Current load＜9%,Rated load (J1,J2 relay is
released)
J1
Current load ≥9%,Rated load(J1 relay closed)
J2
Current load ＞100% (J2 relay closed)
PJ.1~3
J1 Light load output
PJ.4~6
J2 Over load output
PJ.7~8
System power supply DC24V/100mA
1.
Application Range
Being applicable to all tractor driven or roll-driven villa elevators
（ Load range depending on load sensor）
⒉
Sensitivity
For the elevator with rated load of 1 ton, it is 5Kg
⒊
System Error
≤
1.5
％
(-20
～
55
℃
)
⒋
Output Mode
Switching Signal：light load and over load Dynamic Close and Dynamic
Open contact
⒌
Operation
Temperature
-20
～
55
℃
⒍
Power Source
DC 24V(±10%)，Operating current for the whole set≤100mA
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—2页
2
、
The pulling force of the wire rope is not balanced;
3
、
The phenomenon of squatting at the bottom;
Sensor selection and installation：
System Adjustment
：
Yes
Yes
Yes
State Indication of
〖Lo〗
Reset to Default
State
After power on，
press【◎】to turn
on. Release 【◎】
after
〖
PP
〗
indicating for 10
seconds later
display 〖 Pn 〗
system will be
reset to default
state
Press【◎】，display〖Pn〗， show 〖PL〗will flicker for 6s，which means the
end of No-load Self-learning.
No
1. After proper installation of this
device and check of no erro
r，turn on the system.
2. Stop the elevator at the bottom
floor and let the car be of
no load.
Yes
Indicating〖PH〗，Enter "load self learning state" load 100% weight
For example, for a 1T load elevator, load 1000kg
Press【◎】，display〖Pn〗later,show 〖J1〗 which means the end of Rated Load Learning.
After the system debugging is completed, during normal operation, press and hold [
◎
],
〖
J1
〗
/ J2
〗
Load sensor
Model
XCL-Y/3411
XCL-YH/5018
XCL-T/A（20)
Dimensions
See photo
See photo
See photo
Load sensor
Model
XCL-T/B（20)
XCL-ZL/P2
XCL-ZL/W
Dimensions
See photo
See photo
See photo
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—3页
alternately flashing, while J1 / J2 alternately output.
times the load multiplier to modify the operation: (need to debug a good system to
operate)
Return to normal working condition
1.system Power off
2.press
【◎】
power-on,show
〖
PP
〗
released
：
(Note
：
press
【◎】
10 Seconds
，
over Seconds system will clear the existing data back to the factory state)
3.During Show〖Pd〗and 〖01〗 alternately flash, it indicates that it has entered
the load multiplier setting.
During show
〖
01
〗
flicker
，
press
【◎】，
Multiplication will increase
，
until
〖30〗 later，Will loop back〖01〗Start to increase again。After reaching the
desired multiplier， press 【◎】,keep 2-3 seconds，display〖Pn〗
Remember and save the value
，
Into normal mode of operation.
（
exp
：
For
Example:For the elevator that has a load memory learning of 1000kg, the
parameter 〖Pd〗 is modified to 05, select 5 times, and the full load is
90%x5000kg; Overload > 100%x5000kg;) (Note: The default 〖Pd〗 parameter
of the weighing device is
〖
05
〗
, which means 5 times multiplied, and
〖
30
〗
,
which means 30 times multiplied, this parameter is used cautiously)
Yes
Description of Other Indication States
：
Display
Code
Implication
Solution
1
YS
System Startup
2
PC
Sensor Resetting
3
PP
Get into the status of operation parameters modification
4
Lo
Ready for Self-learning Operation
5
PL
Self-learning no-load
parameters
(Static Displaying represents preparative
status，twinkling displaying for the end of
testing)
6
PH
Self-learning load parameters
7
Pn
Memory is complete
Promise
1. If this system appears any quality problem of product itself in 1 year after delivery, it will be
replaced freely（damage of the product seal will not be dealt with）.
2. Any system abnormality in adjustment or operation, please contact our company directly.
Others
Technical support: 18092639750 18092639752
Packing
List
Controller of EWD-RL-BJ2
Elevator Loading Device
1
Load sensor and accessories
1 Set
Screw Sets M4 X 40
2 Sets
System Instruction Manual
1 Copy
2.Address book
：
Xi
’
AN EXCELLENT ELECTROMECHANICAL CO.,LTD
：
(029)88416613 85565174
(029)85568478
：
7D
，
Block A, Olympic Building, 14th Chang
An North Road, Xi'an, Shaanxi,China
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—4页
Attached page：
Load cell / tension sensor dimensions and installation
1.XCL-Y/3411 load sensor dimensions:
1.1 size （range：6KN、12KN）
Installation diagram 1
Installation diagram 2
注意：用户自制夹板时，A距离应等于B距离。
A
B
70
3-Φ6
均布
2-支撑螺钉
上绳头板
下绳头板
传感器
11
Φ26
2-M8
上绳头板
下绳头板
Φ
62
3-
Φ
16
均布
3-
Φ
6.5
均布
传感器
Φ
26
11
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—5页
2. XYL-YH/5018 load sensor dimensions:
2.1 size （range：15KN）
2.2 Installation diagram
3. XYL-Y/5222 load sensor dimensions:
3.1 size （range：6KN）
Φ
4
4
7
22
Φ10
Φ52
4-M5（深8）
均布
4芯带屏蔽线缆
长度：8米
配4-M5内六方圆柱头螺钉
GB/70.1-2000
70
100
Φ
25
22
GB/70.1-2000
配2-M5内六方圆柱头螺钉，L=8
9
2-M5
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—6页
3.2 Installation diagram
4.XCL-ZL/W load sensor dimensions:
4.1 size（range：15KN）
Note: During installation, be sure to use Ø6 steel wire rope to connect the safety ring and secure
it on the support of the traction machine to prevent the sensor from falling off during installation
and debugging to ensure personal safety!
A
B
70
100
25
2-
Φ
9
4-
Φ
9
均布
45
30
Φ
44
压杆
上绳头板
下绳头板
传感器
22
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—7页
4.2 Installation diagram
5.XCL-T/A(20)load sensor dimensions:
5.1 size （range：12KN）
5.2 Installation diagram
38
50
2-M10
86
20
5
2-
Φ
8
100
11.5
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—8页
6.XCL-T/B（20)load sensor dimensions:
6.1 size（range：10KN） 6.2 Installation diagram
7.XCL-ZL/P2 load sensor dimensions:
7.1 size（range for one：0.5T） 7.2 Installation diagram
100
86
44
50
20
7
7
2-M10
2-
Φ
6.5
24
18
70
下夹板
上夹板
EWD-RL-BJ2 Villa elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第9—9页
8.XCL-ZL/P2 load sensor dimensions:
8.1 size（range for one：0.5T） 8.2 Installation diagram
